| GUTTAPRAL NATURCOLOR Multi-layer, bitumen corrugated roof sheets With colour impregnation for final covering Gutta bitumen products are robust and have proven themselves under all climatic conditions: gutta corrugated sheets are an economical solution for roofing covering large areas. Guttatec bitumen shingles are also available in many different shapes and colors. |
Properties:
Excellent dimensional stability
Long life and maintenance-free
Available in four natural colors
Low weight
Easy to use and fast installation
15 years guarantee under warranty provision
Rust Proof
No need for insulation
Your options
Roof covers
Wall covering
Old roof reconditioning
Do it yourself
Gutapral sheets for the final covering of roofs are manufactured by first forming a loadbearing
frame that is subsequently vacuum-bituminized and coloured in order to provide a pleasant
appearance to the roof, whilst ensuring an effective water barrier.
Gutta corrugated bitumen sheets are an easy-to-process, long-life and economical solution for
roofing and wall covering. The sheets are available in four natural colours, particularly
aging-resistant and are an eco-friendly, formaldehyde-free recycling-product. Our bitumen
sheets have been in use world-wide for decades. Millions of installed Gutta corrugated bitumen
sheets sheets provide striking proof of its durability under all imaginable climatic conditions. The
high maximum load exceeds the required official values. This results from the special multi-layer
method and the fine corrugation.
Quality
Quality is the basis for gutta corrugated bitumen sheets, which have been installed in the millions
in past decades. In order to insure constant quality, gutta corrugated bitumen sheets are
continuously checked and tested by the Materials Testing Institute of the Technical University of
Karlsruhe which allows us to give a worldwide 15-year guarantee against leakage. The sheets
are largely resistant to external influences such as industrial atmospheres, heat and frost.
Modernising roofs with corrugated bitumen sheets
The strong stability of the sheets is to a large measure owed to the multi-layer design which
allows light-weight substructure. Corrugated bitumen sheets are also the perfect choice for
modernising and refurbishing work because they adapt easily to different types of substructures.
Tips for safe and easy workmanship
Watching a few basic tips will help you fix the corrugated bitumen sheets quickly and safely.
What's important, for example, is a vapour-permeable sarking membrane to make sure the
condensation water is collected. With these preparations done, use a saw, hammer and the gutta
nails to fix the sheets easily and conveniently. It's best to fix the sheets facing the prevailing wind
direction. Offset the joining cover by half a sheet width.
Safe fixing for corrugated bitumen sheets
Use the specially designed gutta nails to fix the guttapral corrugated bitumen sheets. Fix the
sheets on every third peak, fix on every peak in the eaves or overlap zone. If the sheets are not
used for roofing but for wall cladding, make sure to fix the sheets at a sufficient distance from
ground or floor.
Excellent dimensional stability
Long life and maintenance-free
Available in four natural colors
Low weight
Easy to use and fast installation
15 years guarantee under warranty provision
Rust Proof
No need for insulation
Your options
Roof covers
Wall covering
Old roof reconditioning
Do it yourself
Gutapral sheets for the final covering of roofs are manufactured by first forming a loadbearing
frame that is subsequently vacuum-bituminized and coloured in order to provide a pleasant
appearance to the roof, whilst ensuring an effective water barrier.
Gutta corrugated bitumen sheets are an easy-to-process, long-life and economical solution for
roofing and wall covering. The sheets are available in four natural colours, particularly
aging-resistant and are an eco-friendly, formaldehyde-free recycling-product. Our bitumen
sheets have been in use world-wide for decades. Millions of installed Gutta corrugated bitumen
sheets sheets provide striking proof of its durability under all imaginable climatic conditions. The
high maximum load exceeds the required official values. This results from the special multi-layer
method and the fine corrugation.
Quality
Quality is the basis for gutta corrugated bitumen sheets, which have been installed in the millions
in past decades. In order to insure constant quality, gutta corrugated bitumen sheets are
continuously checked and tested by the Materials Testing Institute of the Technical University of
Karlsruhe which allows us to give a worldwide 15-year guarantee against leakage. The sheets
are largely resistant to external influences such as industrial atmospheres, heat and frost.
Modernising roofs with corrugated bitumen sheets
The strong stability of the sheets is to a large measure owed to the multi-layer design which
allows light-weight substructure. Corrugated bitumen sheets are also the perfect choice for
modernising and refurbishing work because they adapt easily to different types of substructures.
Tips for safe and easy workmanship
Watching a few basic tips will help you fix the corrugated bitumen sheets quickly and safely.
What's important, for example, is a vapour-permeable sarking membrane to make sure the
condensation water is collected. With these preparations done, use a saw, hammer and the gutta
nails to fix the sheets easily and conveniently. It's best to fix the sheets facing the prevailing wind
direction. Offset the joining cover by half a sheet width.
Safe fixing for corrugated bitumen sheets
Use the specially designed gutta nails to fix the guttapral corrugated bitumen sheets. Fix the
sheets on every third peak, fix on every peak in the eaves or overlap zone. If the sheets are not
used for roofing but for wall cladding, make sure to fix the sheets at a sufficient distance from
ground or floor.

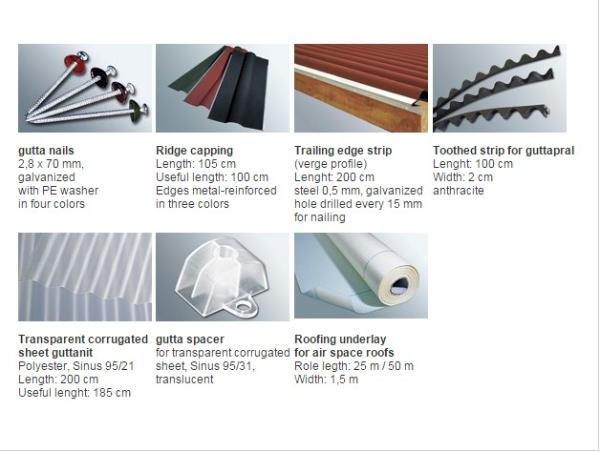

GUTTA ACCESSORIES

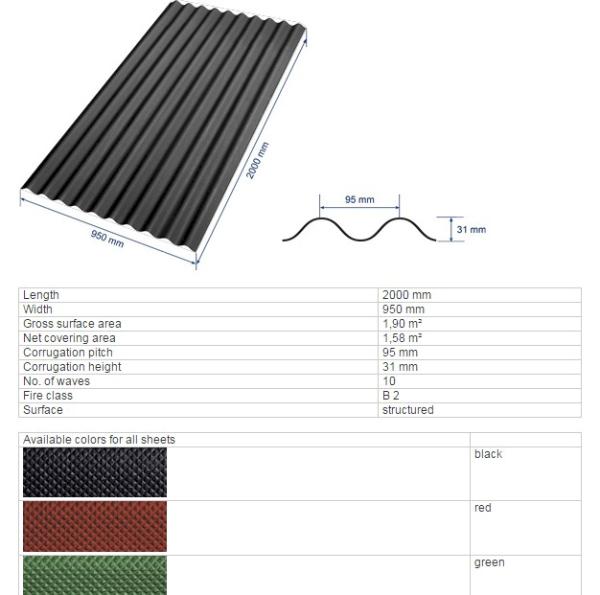

TECHNICAL DATA
Warranty
The manufacturer provides a 15 years warranty in accordance to the following warranty terms on
condition that the genuine gutta products are used and the installation instructions are followed.
The gutta werke guarantees its guttanit®/ guttapral®/ gutta do it® corrugated bitumen sheets for
roofs and walls within the following scope and in accordance to the following terms:
Scope of warranty: Water permeability
In the event of water permeability within 15 years, the gutta werke will replace the sheets and
accessories free of charge. Excluded are the above-mentioned warranty terms for damages to the
bituminous corrugated sheets caused by strom, hail, and lightning or trough the fault parties other
than the guarantor. All further claims shall be excluded.
Terms of warranty:
The aforementioned right to claim under warranty may only be asserted if the following conditions
have been met:
the original receipt with purchase date and purchase quantity must be submitted
the local and national building regulations and statutory ordinances must be observed
the installation instructions were followed (included in each package of nails)
once damage was determined, the notice of damage form was immediately requested, filled out,
and sent back to the issuer of the invoice. Please request claim notification in your respective
language
no work include in the scope of this warranty work was performed without the approval of the gutta
werke
measure for minimizing damage were implemented
Within 4 weeks of receiving the notice of loss and compliance with the above terms, the gutta werke
manufacturers for its part, depending on scope of damage, is obliged to send an inspector to
assess the damage or to promotly make good the damage. Repairs or replacement work performed
under warranty neither extends the period of warranty nor begins an new period of warranty.
Warranties provided by the vendor to the final costumers based on the purchase agreement for the
guttanit®/ guttapral®/ gutta do it® corrugated bitumen sheets shall remain unaffected.
The manufacturer provides a 15 years warranty in accordance to the following warranty terms on
condition that the genuine gutta products are used and the installation instructions are followed.
The gutta werke guarantees its guttanit®/ guttapral®/ gutta do it® corrugated bitumen sheets for
roofs and walls within the following scope and in accordance to the following terms:
Scope of warranty: Water permeability
In the event of water permeability within 15 years, the gutta werke will replace the sheets and
accessories free of charge. Excluded are the above-mentioned warranty terms for damages to the
bituminous corrugated sheets caused by strom, hail, and lightning or trough the fault parties other
than the guarantor. All further claims shall be excluded.
Terms of warranty:
The aforementioned right to claim under warranty may only be asserted if the following conditions
have been met:
the original receipt with purchase date and purchase quantity must be submitted
the local and national building regulations and statutory ordinances must be observed
the installation instructions were followed (included in each package of nails)
once damage was determined, the notice of damage form was immediately requested, filled out,
and sent back to the issuer of the invoice. Please request claim notification in your respective
language
no work include in the scope of this warranty work was performed without the approval of the gutta
werke
measure for minimizing damage were implemented
Within 4 weeks of receiving the notice of loss and compliance with the above terms, the gutta werke
manufacturers for its part, depending on scope of damage, is obliged to send an inspector to
assess the damage or to promotly make good the damage. Repairs or replacement work performed
under warranty neither extends the period of warranty nor begins an new period of warranty.
Warranties provided by the vendor to the final costumers based on the purchase agreement for the
guttanit®/ guttapral®/ gutta do it® corrugated bitumen sheets shall remain unaffected.
